EXERCISE 4.5

Draw the following.
1. The square READ with RE=5.1 cm.
2. A rhombus whose diagonals are 5.2 cm and 6.4 cm long.
3. A rectangle with adjacent sides of lengths 5 cm and 4 cm.
4. A parallelogram OKAY where OK = 5.5 cm and KA=4.2 cm. Is it unique?

`text{Solution:}`
1. `text{The square READ with RE=5.1 cm.}`

`text{Rough sketch of a parallelogram READ.}`

`text{Fair sketch of a parallelogram READ.}`

`text{Step of construction.}`

1) `text{Draw RE=5.1 cm.}`

2) `text{Draw an angle of 90° at E and cut}``text{ EA=5.1 cm.}`

3) `text{Draw two arcs from A and R with a}``text{ radius of 5.1 cm intersect at D.}`

4) `text{Join AD and RD.}`

5) `text{We get rhombus READ.}`

2.`text{A rhombus whose diagonals are 5.2 cm}``text{ and 6.4 cm long.}`

`text{Rough sketch of a parallelogram ABCD.}`

`text{Fair sketch of a parallelogram ABCD.}`

`text{Step of Construction:}`

`[text{Diagonal of a rhombus bisect each other at}``text{ the right angle.}]`

1) `text{Draw AC = 5.2 cm.}`

2) `text{Draw perpendicular bisector of AC at O.}`

3) `text{Draw two arcs with a center}``text{ O of radius }``1/2text{×DE =}``1/2text{×6.4 = 3.2 cm}``text{ to meet the perpendicular bisector at B}``text{ and D.}`

5) `text{Join AB, BC, CD, and DA}`

6) `text{We get rhombus ABCD.}`

3. `text{A rectangle with adjacent sides of}``text{ lengths 5 cm and 4 cm.}`

`text{Rough sketch of a rectangle ABCD.}`

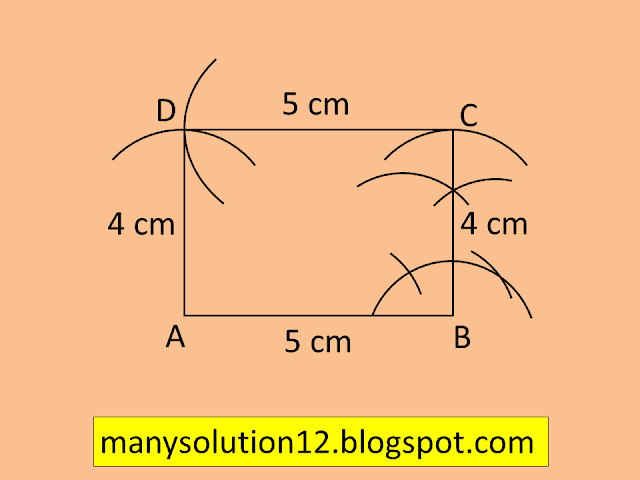

`text{Fair sketch of a rectangle ABCD.}`

`text{Step of construction}`

`[text{Each angle of a rectangle is 90° and}``text{ opposite sides are equal.}]`

1) `text{Draw AB=5 cm.}`

2) `text{Draw an angle of 90° at B and}``text{ cut BC=4 cm.}`

3) `text{Draw an arc with center C of radius 5 cm.}`

4) `text{Draw another arc with a center A of radius}``text{ 4 cm to meet the previous arc at D.}`

5) `text{Join BC, CD and DA.}`

6) `text{We get rectangle ABCD.}`

4. `text{A parallelogram OKAY where}``text{ OK = 5.5 cm and KA=4.2 cm.}``text{ Is it unique?}`

`text{Rough sketch of a parallelogram OKAY.}`

`text{Fair sketch of a parallelogram OKAY.}`

`text{Step of Construction:}`

`[text{Opposite sides of a parallelogram are equal.}]`

1) `text{Draw OK = 5.5 cm.}`

2) `text{Draw an angle 60° at K of and}``text{ cut KA 4.2 cm.}`

3) `text{Draw an arc with a center A of radius}``text{ 5.5 cm.}`

4) `text{Draw another arc with a center O of}``text{ radius 4.2 cm to meet the previous arc}``text{ at Y.}`

5) `text{Join AY, and OY}`

6) `text{We get quadrilateral OKAY}`

`text{No, it is not a unique parallelogram}``text{ because value of angle K can other than 60°}`
